sgltk::Texture Class Reference

Manages textures. More...

#include <texture.h>

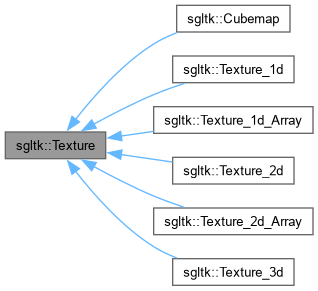

Inheritance diagram for sgltk::Texture:

Public Member Functions
void	set_parameter (GLenum name, int parameter)
	Sets a texture parameter.
void	set_parameter (GLenum name, float parameter)
	Sets a texture parameter.
void	set_parameter (GLenum name, float *parameter)
	Sets a texture parameter.
virtual void	bind (unsigned int texture_unit=0)=0
	Bind the texture to be used by the shader.
virtual void	unbind (unsigned int texture_unit=0)=0
	Unbind the texture.
void	bind_image (GLuint unit, GLint level, GLboolean layered, GLint layer, GLenum access, GLenum format)
	Binds a level of a texture to an image unit.

Static Public Member Functions
static void	add_path (std::string path)
	Adds a path to the list of paths to be searched for image files.
static bool	store_texture (std::string name, std::shared_ptr< Texture > texture)
	Stores a texture object in an internal map using the name parameter as key (no duplicates)
static std::shared_ptr< Texture >	find_texture (std::string name)
	Finds a texture in the internal map using the name as key.

Public Attributes
GLenum	target
	The texture target.
GLuint	texture
	The texture name.
unsigned int	width
	The width of the texture.
unsigned int	height
	The height of the texture.
unsigned int	num_layers
	The number of layers.

Detailed Description

Manages textures.

Definition at line 13 of file texture.h.

Constructor & Destructor Documentation

Texture()

Texture::Texture

(

)

Definition at line 7 of file texture.cpp.

~Texture()

Texture::~Texture

(

)

Definition at line 14 of file texture.cpp.

Member Function Documentation

add_path()

void Texture::add_path ( std::string path )

static

Adds a path to the list of paths to be searched for image files.

Parameters

path	The path to add to the list

Note

To avoid duplicates this function first performs a search on existing entries.

Definition at line 47 of file texture.cpp.

bind()

virtual void sgltk::Texture::bind ( unsigned int texture_unit = 0 )

pure virtual

Bind the texture to be used by the shader.

Parameters

texture_unit

The texture unit to bind the texture to

Implemented in sgltk::Cubemap, sgltk::Texture_1d, sgltk::Texture_1d_Array, sgltk::Texture_2d, sgltk::Texture_2d_Array, and sgltk::Texture_3d.

bind_image()

void Texture::bind_image	(	GLuint	unit,
		GLint	level,
		GLboolean	layered,
		GLint	layer,
		GLenum	access,
		GLenum	format )

Binds a level of a texture to an image unit.

Parameters

unit	The index of the image unit to which to bind the texture
level	The level of the texture that is to be bound
layered	Specifies whether a layered texture binding is to be established
layer	If layered is GL_FALSE, specifies the layer of texture to be bound to the image unit, ignored otherwise
access	Specifies the type of access that will be performed on the image
format	Specifies the format that the elements of the image will be treated as

Definition at line 51 of file texture.cpp.

find_texture()

std::shared_ptr< Texture > Texture::find_texture ( std::string name )

static

Finds a texture in the internal map using the name as key.

Parameters

name	The key used to find the texture

Returns

Returns a pointer to the found texture object or nullptr if no texture with such name could be found.

Definition at line 40 of file texture.cpp.

set_parameter() [1/3]

void Texture::set_parameter	(	GLenum	name,
		float *	parameter )

Sets a texture parameter.

Parameters

name	The name of the texture parameter
parameter	The parameter value

Definition at line 30 of file texture.cpp.

set_parameter() [2/3]

void Texture::set_parameter	(	GLenum	name,
		float	parameter )

Sets a texture parameter.

Parameters

name	The name of the texture parameter
parameter	The parameter value

Definition at line 24 of file texture.cpp.

set_parameter() [3/3]

void Texture::set_parameter	(	GLenum	name,
		int	parameter )

Sets a texture parameter.

Parameters

name	The name of the texture parameter
parameter	The parameter value

Definition at line 18 of file texture.cpp.

store_texture()

bool Texture::store_texture ( std::string name, std::shared_ptr< Texture > texture )

static

Stores a texture object in an internal map using the name parameter as key (no duplicates)

Parameters

name	The key used to store the texture
texture	The texture to be stored

Returns

Returns true if the insertion was successful, false otherwise

Definition at line 36 of file texture.cpp.

unbind()

virtual void sgltk::Texture::unbind ( unsigned int texture_unit = 0 )

pure virtual

Unbind the texture.

Parameters

texture_unit

The texture unit to bind the texture to

Implemented in sgltk::Cubemap, sgltk::Texture_1d, sgltk::Texture_1d_Array, sgltk::Texture_2d, sgltk::Texture_2d_Array, and sgltk::Texture_3d.

Member Data Documentation

height

unsigned int sgltk::Texture::height

The height of the texture.

Definition at line 42 of file texture.h.

num_layers

unsigned int sgltk::Texture::num_layers

The number of layers.

Definition at line 46 of file texture.h.

target

GLenum sgltk::Texture::target

The texture target.

Definition at line 30 of file texture.h.

texture

GLuint sgltk::Texture::texture

The texture name.

Definition at line 34 of file texture.h.

width

unsigned int sgltk::Texture::width

The width of the texture.

Definition at line 38 of file texture.h.

---

The documentation for this class was generated from the following files:

• /home/fstdb/proj/sgltk_example/sgltk/src/texture.h
• /home/fstdb/proj/sgltk_example/sgltk/src/texture.cpp
